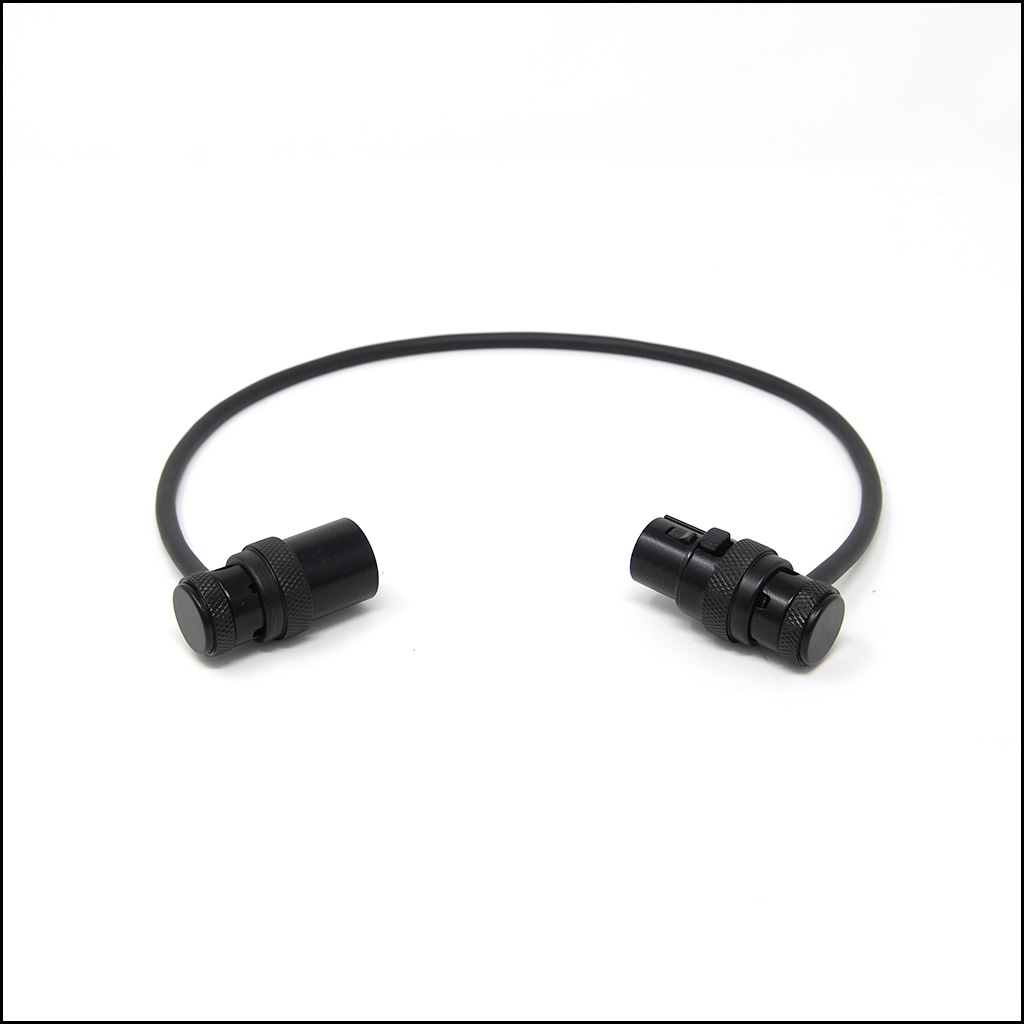

Square Plug XLR Patch Cable

Declutter your setup with the Revelation Square Plug XLR Patch Cable. Designed for dense pedalboards and compact electronic music rigs, it eliminates the bulky overhang caused by standard XLR connectors.

Engineered for tight spaces, the Square Plug connectors feature a radically shortened barrel. When connected, only 1.106 inches (Male) or 1.14 inches (Female) protrudes from the chassis. The innovative cable clamping mechanism provides effective strain relief, while the cable exit can be adjusted to 8 different angles (every 45°), ensuring a perfect fit in any orientation. These connectors are paired with Mogami 2552 cable, an industry standard delivering pristine signal integrity, superior noise rejection, and optimal flexibility.

For the electronic musician, versatility is key. Combine these Square Plug XLR ends with our Revelation Mini TRS Pancake connectors to create custom hybrid cables ideal for connecting studio monitors, audio interfaces, outboard gear, and mixers. Whether you’re running balanced lines from an interface to a monitor controller or patching between a patchbay and analog synths, this modular solution ensures a clean, reliable signal path. Built road-tough and backed by our Lifetime Warranty, it’s the professional’s choice for a clutter-free studio.

Technical Specifications

• Connector Type (Male):  Square Plug XLR (SPXA-M)

  • Protrusion when connected: 1.106 in. (30.5mm)

• Connector Type (Female): Square Plug XLR (SPXA-F)

  • Protrusion when connected: 1.14 in. (29mm)

• Cable Exit: Radially adjustable to 8 positions (every 45°)

• Strain Relief: Integrated cable clamping mechanism for durability

• Cable: Mogami 2552 (5 mm [0.19″] diameter) with Oxygen-Free Copper (OFC) conductors and a spiral shield

• Warranty: Lifetime Warranty
